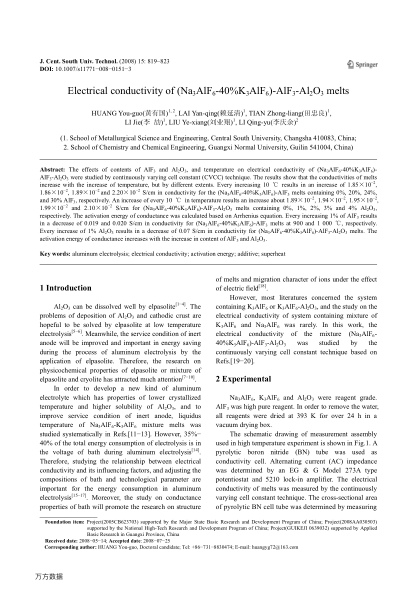

The effects of contents of AlF3 and Al2O3,and temperature on electrical conductivity of (Na3AlF6-40%K3AlF6)-AlF3-Al2O3 were studied by continuously varying cell constant (CVCC) technique.The results show that the conductivities of melts increase with the increase of temperature,but by different extents.Every increasing 10 ℃ results in an increase of 1.85×10-2,1.86×10-2,1.89×10-2 and 2.20×10-2 S/cm in conductivity for the (Na3AlF6-40%K3AlF6)-AlF3 melts containing 0%,20%,24%,and 30% AlF3,respectively.An increase of every 10 ℃ in temperature results an increase about 1.89×10-2,1.94×10-2,1.95×10-2,1.99×10-2 and 2.10×10-2 S/cm for (Na3AlF6-40%K3AlF6)-AlF3-Al2O3 melts containing 0%,1%,2%,3% and 4% A12O3,respectively.The activation energy of conductance was calculated based on Arrhenius equation.Every increasing 1% of AlF3 results in a decrease of 0.019 and 0.020 S/cm in conductivity for (Na3AlF6-40%K3AlF6)-AIF3 melts at 900 and 1 000 ℃,respectively.Every increase of 1% Al2O3 results in a decrease of 0.07 S/cm in conductivity for (Na3AlF6-40%K3AlF6)-AlF3-Al2O3 melts.The activation energy of conductance increases with the increase in content of AlF3 and Al2O3.
