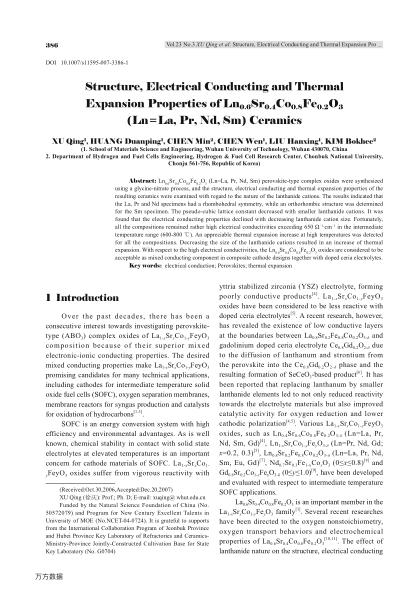

Ln0.6Sr0.4Co0.8Fe0.2O3 (Ln=La, Pr, Nd, Sm) perovskite-type complex oxides were synthesized using a glycine-nitrate process, and the structure, electrical conducting and thermal expansion properties of the resulting ceramics were examined with regard to the nature of the lanthanide cations. The results indicated that the La, Pr and Nd specimens had a rhombohedral symmetry, while an orthorhombic structure was determined for the Sm specimen. The pseudo-cubic lattice constant decreased with smaller lanthanide cations. It was found that the electrical conducting properties declined with decreasing lanthanide cation size. Fortunately, all the compositions remained rather high electrical conductivities exceeding 650Ω1.cm-1 in the intermediate temperature range (600-800℃). An appreciable thermal expansion increase at high temperatures was detected for all the compositions. Decreasing the size of the lanthanide cations resulted in an increase of thermal expansion. With respect to the high electrical conductivities, the Ln0.6Sr0.4Co0.8Fe0.2O3 oxides are considered to be acceptable as mixed conducting component in composite cathode designs together with doped ceria electrolytes.
