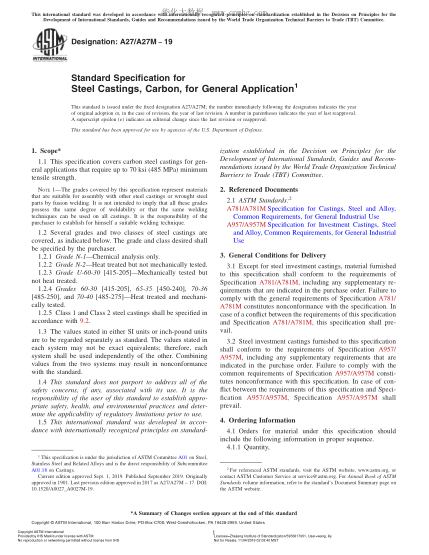

ASTM A27/A27M-2019 通用碳素鋼鑄件規格 Standard Specification for Steel Castings, Carbon, for General Application
- 標準類別:
- 標準大?。?/li>
- 標準編號:ASTM A27/A27M-2019
- 標準狀態:現行
- 更新時間:2023-06-04
- 下載次數:次
1.1 This specification covers carbon steel castings for general applications that require up to 70 ksi (485 MPa) minimum tensile strength.
Note 1: The grades covered by this specification represent materials that are suitable for assembly with other steel castings or wrought steel parts by fusion welding. It is not intended to imply that all these grades possess the same degree of weldability or that the same welding techniques can be used on all castings. It is the responsibility of the purchaser to establish for himself a suitable welding technique.
1.2 Several grades and two classes of steel castings are covered, as indicated below. The grade and class desired shall be specified by the purchaser.
1.2.1 Grade N-1—Chemical analysis only.
1.2.2 Grade N-2—Heat treated but not mechanically tested.
1.2.3 Grade U-60-30 [415-205]—Mechanically tested but not heat treated.
1.2.4 Grades 60-30 [415-205], 標準截圖
-
