Use of 3-D magnetic resonance electrical impedance tomography in detecting human cerebral stroke: a Use of 3-D magnetic resonance electrical impedance tomography in detecting human cerebral stroke: a

Use of 3-D magnetic resonance electrical impedance tomography in detecting human cerebral stroke: a

  • 期刊名字:浙江大學學報B(英文版)
  • 文件大?。?/li>
  • 論文作者:GAO Nuo,ZHU Shan-an,HE Bin
  • 作者單位:School of Electrical Engineering,Department of Biomedical Engineering
  • 更新時間:2023-02-08
  • 下載次數:
論文簡介

We have developed a new three dimensional (3-D) conductivity imaging approach and have used it to detect human brain conductivity changes corresponding to acute cerebral stroke. The proposed Magnetic Resonance Electrical Impedance Tomography (MREIT) approach is based on the J-Substitution algorithm and is expanded to imaging 3-D subject conductivity distribution changes. Computer simulation studies have been conducted to evaluate the present MREIT imaging approach.Simulations of both types of cerebral stroke, hemorrhagic stroke and ischemic stroke, were performed on a four-sphere head model Simulation results showed that the correlation coefficient (CC) and relative error (RE) between target and estimated conductivity distributions were 0.9245±0.0068 and 8.9997%±0.0084%, for hemorrhagic stroke, and 0.6748±0.0197 and 8.8986%±0.0089%,for ischemic stroke, when the SNR (signal-to-noise radio) of added GWN (Gaussian White Noise) was 40. The convergence characteristic was also evaluated according to the changes of CC and RE with different iteration numbers. The CC increases and RE decreases monotonously with the increasing number of iterations. The present simulation results show the feasibility of the proposed 3-D MREIT approach in hemorrhagic and ischemic stroke detection and suggest that the method may become a useful alternative in clinical diagnosis of acute cerebral stroke in humans.

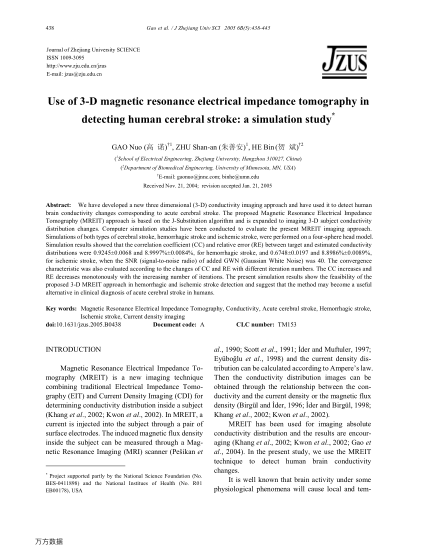

論文截圖
