Synthesis and Crystal Structure of a Novel Organic Adduct Nonlinear Optical Material: 3,5-Dinitroben

期刊名字：結構化學
文件大?。?/li>
論文作者：WANG Yi，LUO Yan-Hua，F(xiàn)ENG Wei，C
作者單位：Department of Chemistry
更新時間：2023-02-12
下載次數：次

論文簡介

The title compound (C2H7NO·C7H4N2O6) has been obtained by the reaction of etha- nolamine with 3,5-dinitrobenzoic acid in deionized water at room temperature. The crystal crystal- lizes in orthorhombic, space group P212121 with a = 6.048(2), b = 9.146(3), c = 21.955(7)(A), C9H11N3O7, Mr = 273.21, Z = 4, V = 1214.3(7)(A)3, Dc = 1.494 g/cm3, F(000) = 568, μ(MoKα) = 0.131 mm-1, R1 = 0.0338 and wR2 = 0.0497. The new organic adduct is composed of one ethanolamine and one 3,5-dinitrobenzoic acid, which are linked up by O-H…O and N-H…O types of hydrogen bonds to form a nine-membered ring and an eleven-membered ring, extending into a one-dimensional network structure.

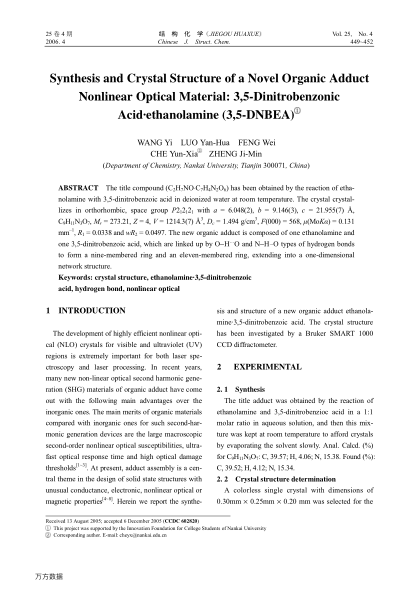

論文截圖
