DIRECT AND ADAPTIVE SLICING ON CAD MODEL OF IDEAL FUNCTIONAL MATERIAL COMPONENTS (IFMC) DIRECT AND ADAPTIVE SLICING ON CAD MODEL OF IDEAL FUNCTIONAL MATERIAL COMPONENTS (IFMC)

DIRECT AND ADAPTIVE SLICING ON CAD MODEL OF IDEAL FUNCTIONAL MATERIAL COMPONENTS (IFMC)

  • 期刊名字:機械工程學報(英文版)
  • 文件大?。?/li>
  • 論文作者:Xu Daoming,Jia Zhenyuan,Guo Do
  • 作者單位:Key Laboratory for Precision and Non-traditionai Machining Technology of Ministry of Education
  • 更新時間:2023-02-11
  • 下載次數:
論文簡介

A brand new direct and adaptive slicing approach is proposed, which can apparently improve the part accuracy and reduce the building time. At least two stages are included in this operation: getting the crossing contour of the cutting plane with the solid part and determining the layer thickness. Apart from usual SPI algorithm, slicing of the solid model has its special requirements.Enabling the contour line segments of the cross-section as long as possible is one of them, which is for improving manufacturing efficiency and is reached by adaptively adjusting the step direction and the step size at every crossing point to obtain optimized secant height. The layer thickness determination can be divided into two phases: the geometry-based thickness estimation and the material-based thickness verifying. During the former phase, the geometry tolerance is divided into two parts: a variety of curves are approximated by a circular arc, which introduces the first part, and the deviation error between the contour line in LM process and the circular arc generates the second part. The latter phase is mainly verifying the layer thickness estimated in the former stage and determining a new one if necessary. In addition, an example using this slicing algorithm is also illustrated.

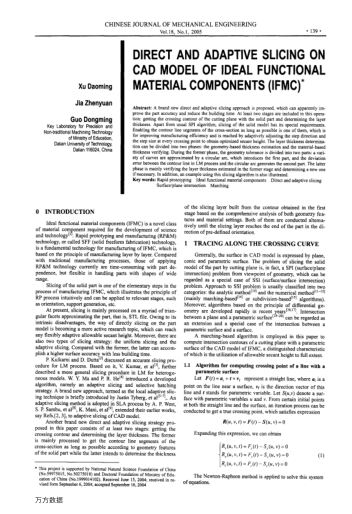

論文截圖
