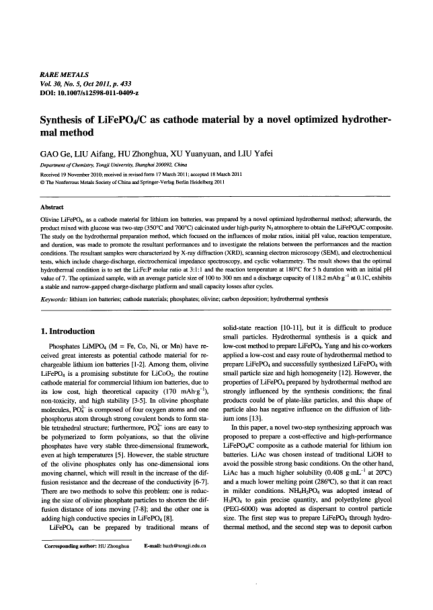

Olivine LiFePO4,as a cathode material for lithium ion batteries,was prepared by a novel optimized hydrothermal method; afterwards,the product mixed with glucose was two-step (350℃ and 700℃) calcinated under high-purity N2 atmosphere to obtain the LiFePO4/C composite.The study on the hydrothermal preparation method,which focused on the influences of molar ratios,initial pH value,reaction temperature,and duration,was made to promote the resultant performances and to investigate the relations between the performances and the reaction conditions.The resultant samples were characterized by X-ray diffraction (XRD),scanning electron microscopy (SEM),and electrochemical tests,which include charge-discharge,electrochemical impedance spectroscopy,and cyclic voltammetry.The result shows that the optimal hydrothermal condition is to set the Li:Fe:P molar ratio at 3:1:1 and the reaction temperature at 180℃ for 5 h duration with an initial pH value of 7.The optimized sample,with an average particle size of 100 to 300 nm and a discharge capacity of 118.2 mAh·g-1 at 0.1C,exhibits a stable and narrow-gapped charge-discharge platform and small capacity losses after cycles.
